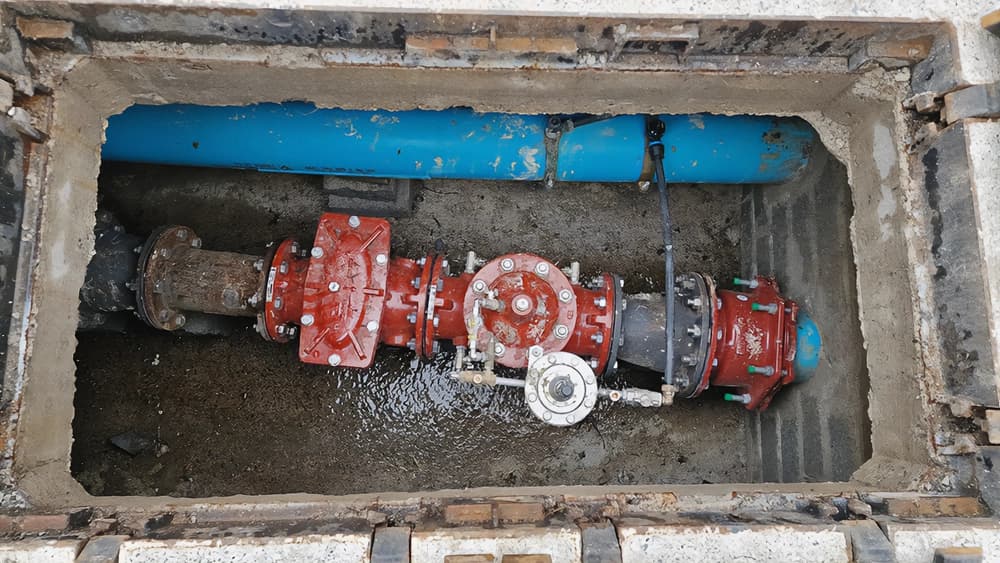

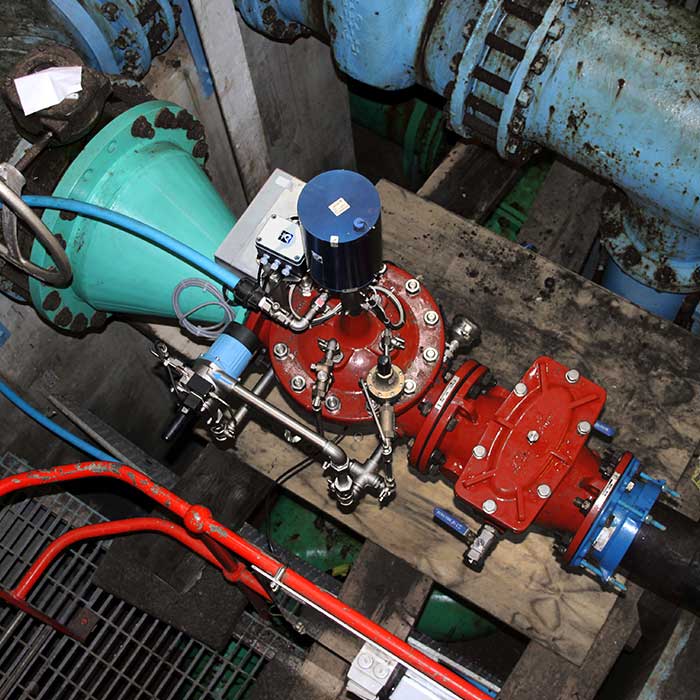

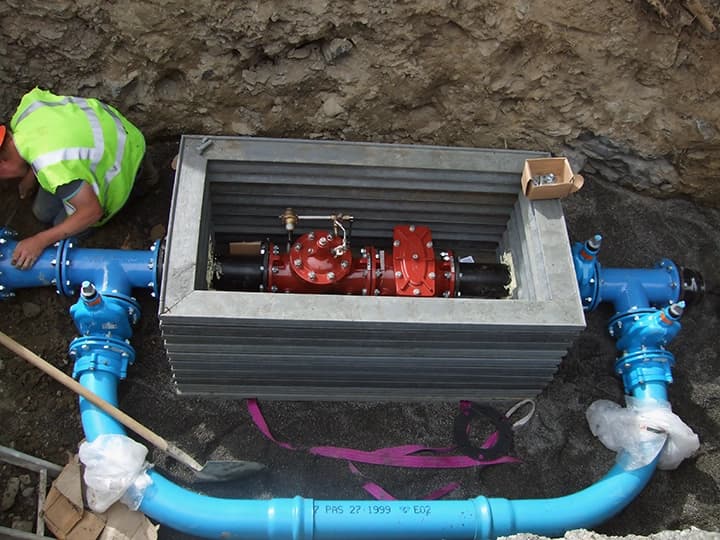

The CLA-VAL CPC 138-01 is designed as a direct acting valve for opening/closing or regulating a pressure, flow or level.
The simple remote changing (4-20 mA analog) of valve set-point is suitable for many applications where the process variable is monitored separately and a SCADA or similar remote control system provides valve control.
Completely Automatic Operation
Easy Adjustment and Maintenance
Quality Approved Materials
World Wide Support
CLA-VAL CPC 138-01 : Position Control Valve with CPC (4-20 mA)
CLA-VAL CPC 138-01 Technical Specifications
| Flanged(mm) | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 | DN350 | DN400 | DN450 | DN500 | DN600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 |
| F | 145 | 170 | 170 | 235 | 295 | 295 | 400 | 510 | 600 | 712 | 712 | 712 | 900 | 900 |
| H | 195 | 225 | 230 | 305 | 365 | 375 | 460 | 547 | 695 | 821 | 821 | 900 | 1035 | 1035 |
| H1(PN10) | 82.5 | 93 | 100 | 110 | 125 | 142.5 | 170 | 200 | 227.5 | 252.5 | 282.5 | 325 | 370 | 430 |
| H1 (PN16) | 82.5 | 93 | 100 | 110 | 125 | 142.5 | 170 | 200 | 227.5 | 260 | 290 | 325 | 370 | 430 |
| H1 (PN25) | 82.5 | 93 | 100 | 117.5 | 135 | 150 | 180 | 212.5 | 242.5 | 277.5 | 310 | 335 | 370 | 430 |
| Hm | 255 | 295 | 300 | 390 | 470 | 480 | 585 | 700 | 875 | 1030 | 1030 | 1200 | 1310 | 1310 |
| A | 190 | 200 | 200 | 200 | 235 | 250 | 270 | 290 | 365 | 400 | 425 | 450 | 520 | 520 |
| B | 145 | 150 | 150 | 160 | 160 | 165 | 200 | 200 | 345 | 385 | 380 | 420 | 460 | 460 |
| øC | 45 | 60 | 60 | 60 | 60 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | - | 120 |
| Weight(Kg) | 15 | 20 | 25 | 40 | 60 | 70 | 120 | 190 | 330 | 540 | 640 | 700 | 980 | 1080 |
