Carriageway Induction Cable Loop Box for roadside access to underground cables.
[eg. traffic counting / automatic vehicle recognition / car park access]GROUP 4
Carriageways of Roads
Pedestrian Streets
Hard Shoulders & Parking Areas
Features
Octagonal Design For Easy Installation

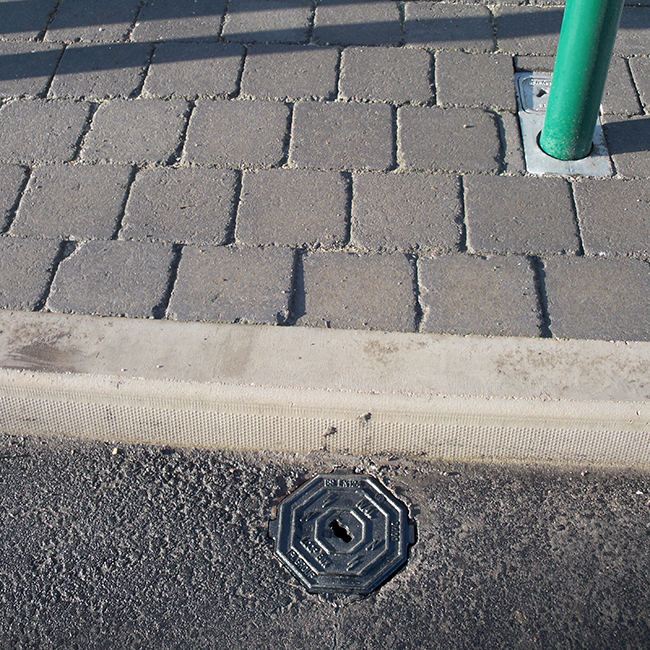

Flush Kerbside Finish
Multi-Directional Access Slots
Spare Access Slots Sealed With Blanking Plates

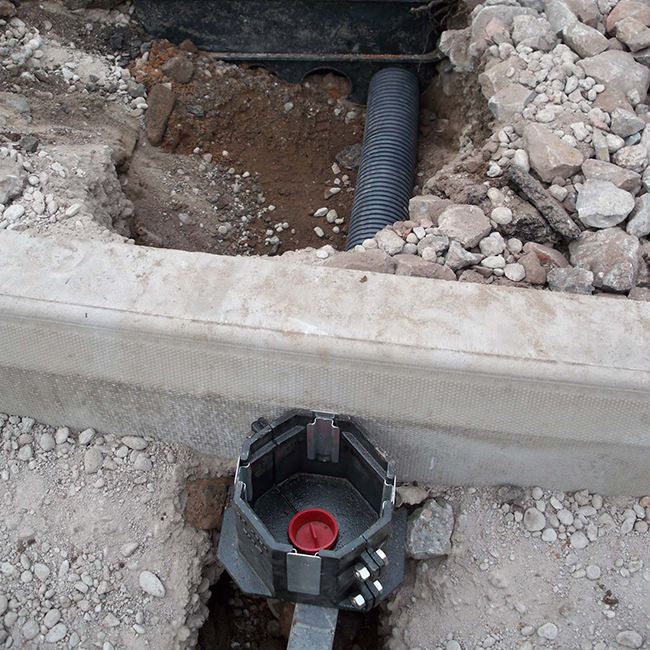

Base Spigot Secures 100mm & 50mm Duct*
Side Access Option*
Single Cover
Non-Rock Action
Open Keyhole
Black Bitumen Coated
Customised Badging Option
Specifications
Frame Size: 216x216mm
Frame Depth: 190mm (150+40)
Weight: 10.5kg
Ductile Iron (Spheroidal Graphite)
EN-GJS-500-7 (Material Standard)
EN124 - Class D400 (Product Standard)
[eg. traffic counting / automatic vehicle recognition / car park access]

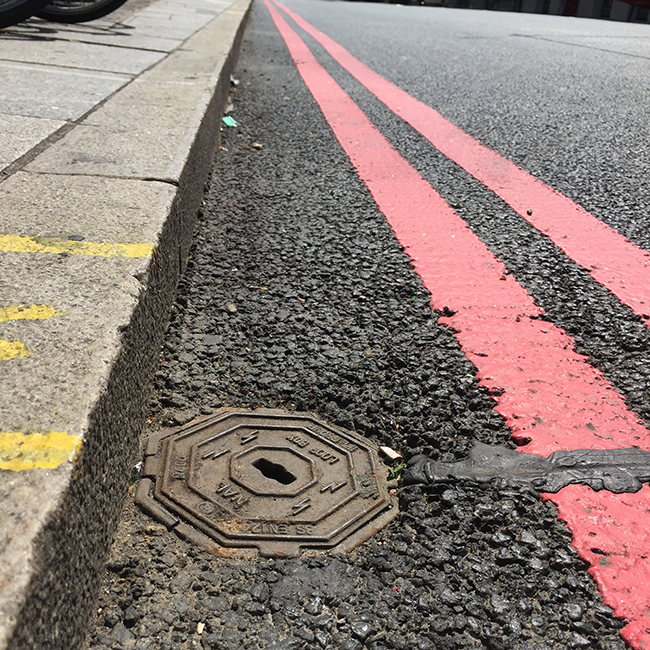

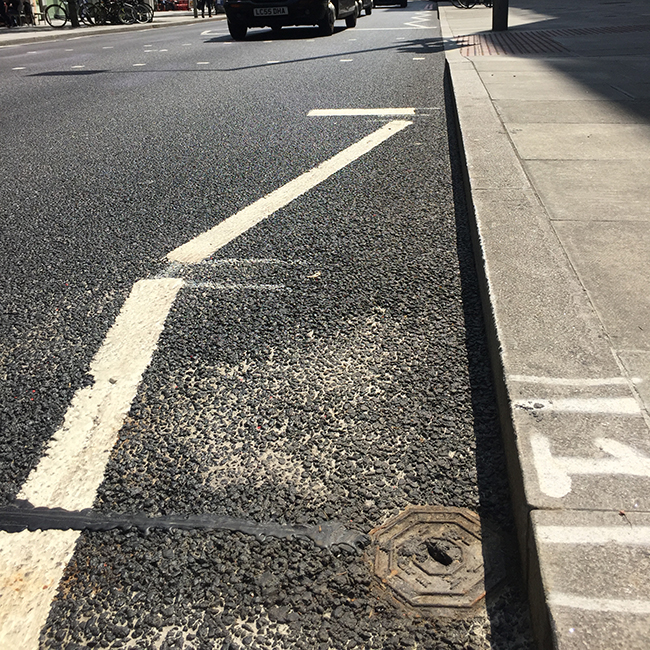

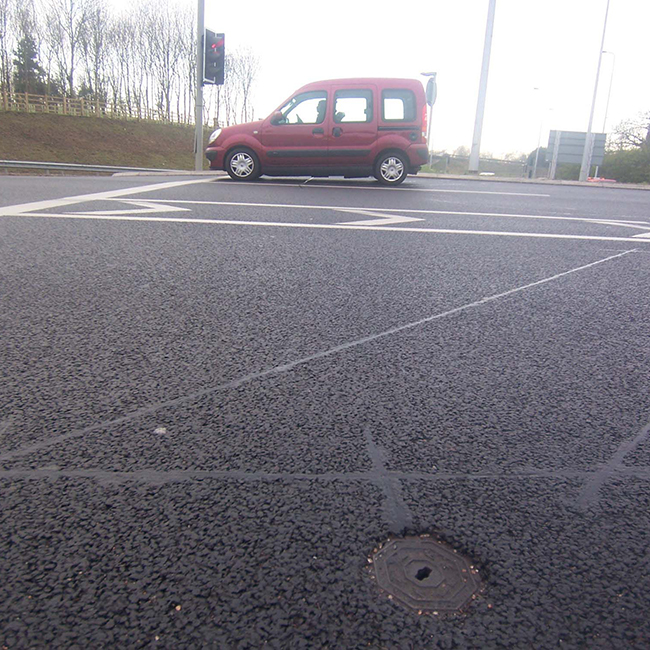

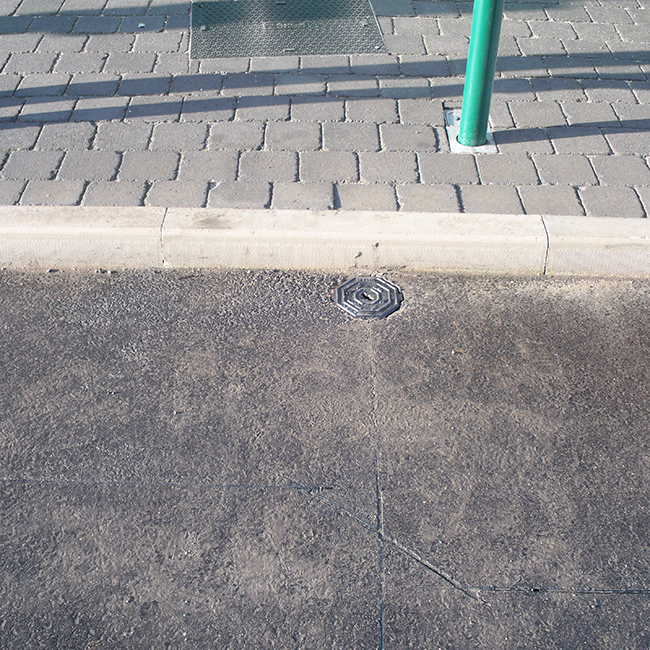

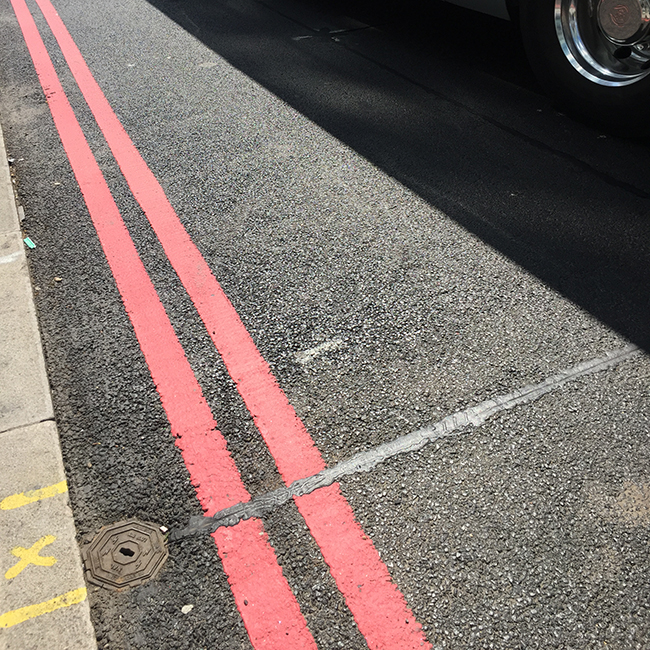

The Induction Cable Loop Box is designed to positively connect inductive loop tails installed in the road surface into a duct at the edge of the carriageway. Manufactured from ductile iron with a one piece D400 (40T) cover, it features 4nr loop tail entry slots to enable connection from all directions. It offers a simple cost effective solution to traditional installation and maintenance problems associated with inductive loops in the carriageway.
