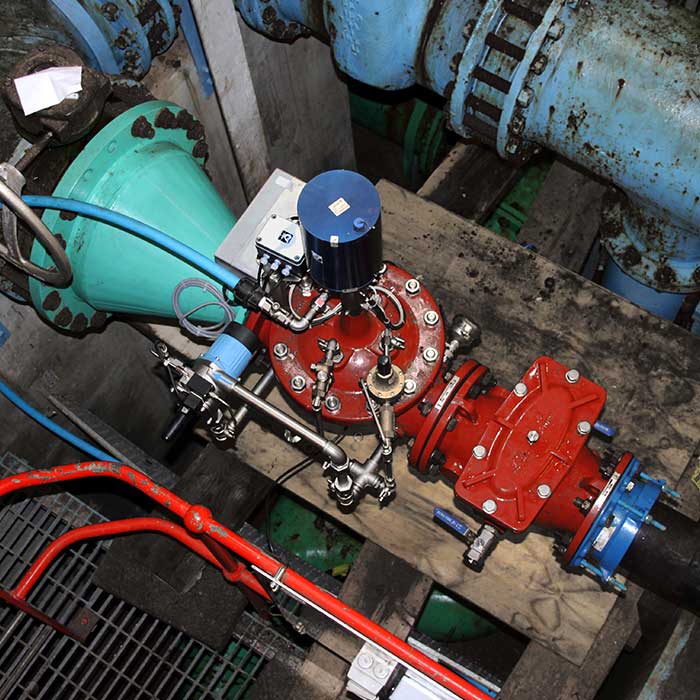

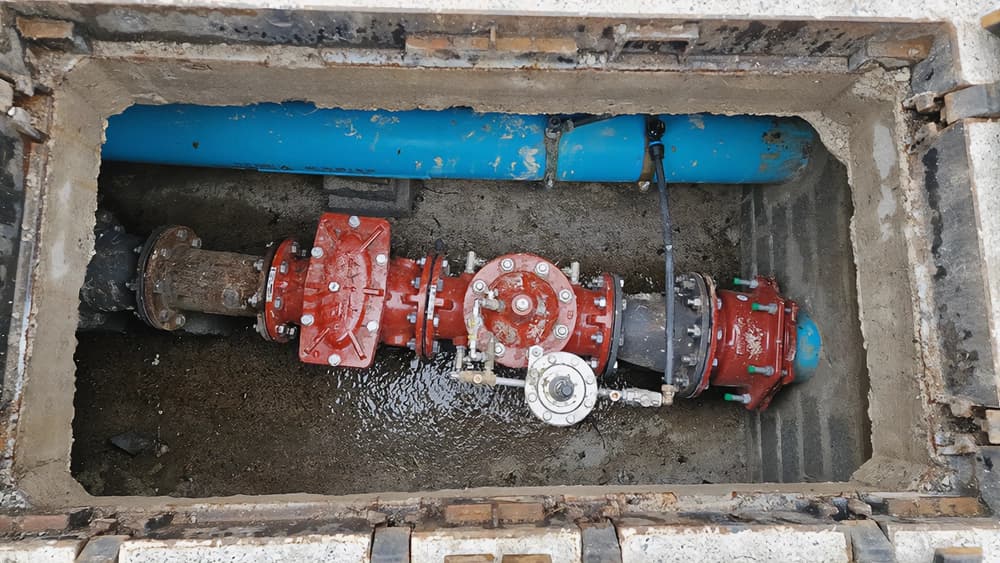

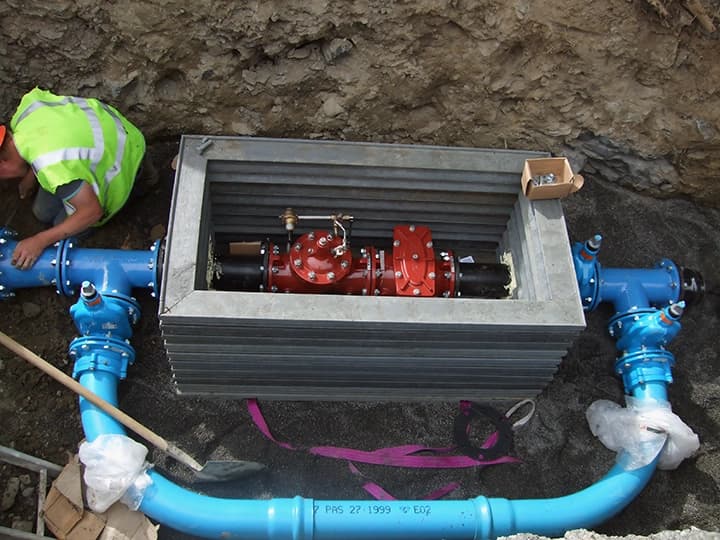

The CLA-VAL 136-07 & -38 is a step by step Solenoid Control Valve for big pipes. Specially designed for applications where an electrical control of the valve is required. The solenoid pilots add or relieve pressure from the cover chamber in order to close or open the valve.
The CLA-VAL 136-07 & -38 can be configured to perform a wide range of functions, like pressure reducing, sustaining, flow control, level control, etc.
Included accessories:
Valve position indicator X101
Gauge cock CSA-12, Rp 1/2" (upstream)
Pressure gauge [0-16 bar]
CLA-VAL 136-38 : Dual Solenoid Control Valve
CLA-VAL 136-38 Technical Specifications
Flanged(mm) | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 | DN300 | DN350 | DN400 | DN450 | DN500 | DN600 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 | 1450 |
F | 145 | 170 | 170 | 235 | 295 | 295 | 400 | 510 | 600 | 712 | 712 | 712 | 900 | 900 |
H | 195 | 225 | 230 | 305 | 365 | 375 | 460 | 547 | 695 | 821 | 821 | 900 | 1035 | 1035 |
H1(PN10) | 82.5 | 93 | 100 | 110 | 125 | 142.5 | 170 | 200 | 227.5 | 252.5 | 282.5 | 325 | 370 | 430 |
H1 (PN16) | 82.5 | 93 | 100 | 110 | 125 | 142.5 | 170 | 200 | 227.5 | 260 | 290 | 325 | 370 | 430 |
H1 (PN25) | 82.5 | 93 | 100 | 117.5 | 135 | 150 | 180 | 212.5 | 242.5 | 277.5 | 310 | 335 | 370 | 430 |
Hm | 255 | 295 | 300 | 390 | 470 | 480 | 585 | 700 | 875 | 1030 | 1030 | 1200 | 1310 | 1310 |
A | 190 | 200 | 200 | 200 | 235 | 250 | 270 | 290 | 365 | 400 | 425 | 450 | 520 | 520 |
B | 145 | 150 | 150 | 160 | 160 | 165 | 200 | 200 | 345 | 385 | 380 | 420 | 460 | 460 |
øC | 45 | 60 | 60 | 60 | 60 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | - | 120 |
Weight(Kg) | 15 | 20 | 25 | 40 | 60 | 70 | 120 | 190 | 330 | 540 | 640 | 700 | 980 | 1080 |
