DN 50 - 300
Resilient seated gate valve according to EN 1074-1 and EN 1074-2 with smooth, straight bore
Flanged valve, short face-to-face dimension

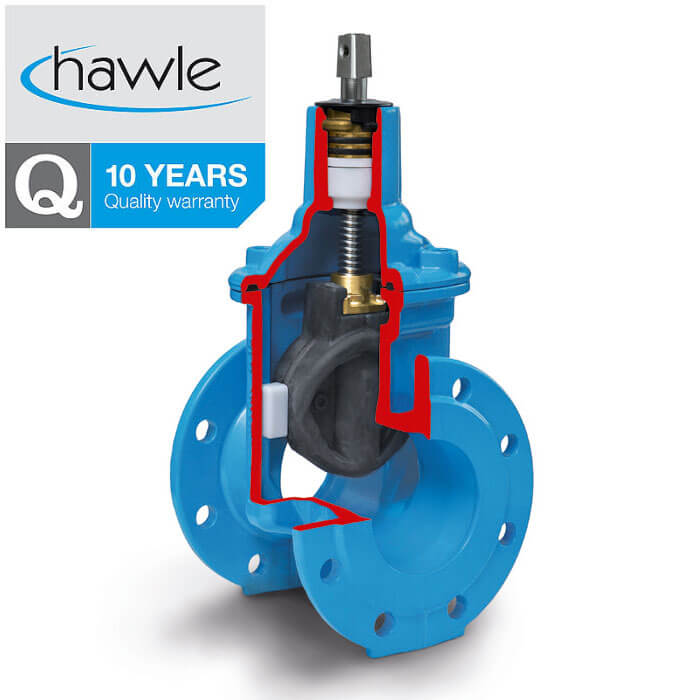

Wedge guide with high glide characteristics; load-optimised design guarantees very low wear and closing torques
Wedge nut resists high torque load due to its larger size with more than the required thread length
Spindle bearing attached in bonnet by bayonet connection
O-rings on all sides mounted in corrosion-proof material
Friction washers guarantee smooth spindle guiding
Suitable for underground installation
Duplex stainless steel spindle
Standard version: without handwheel and extension spindle
(only suitable for manual actuation)
Special versions: on request

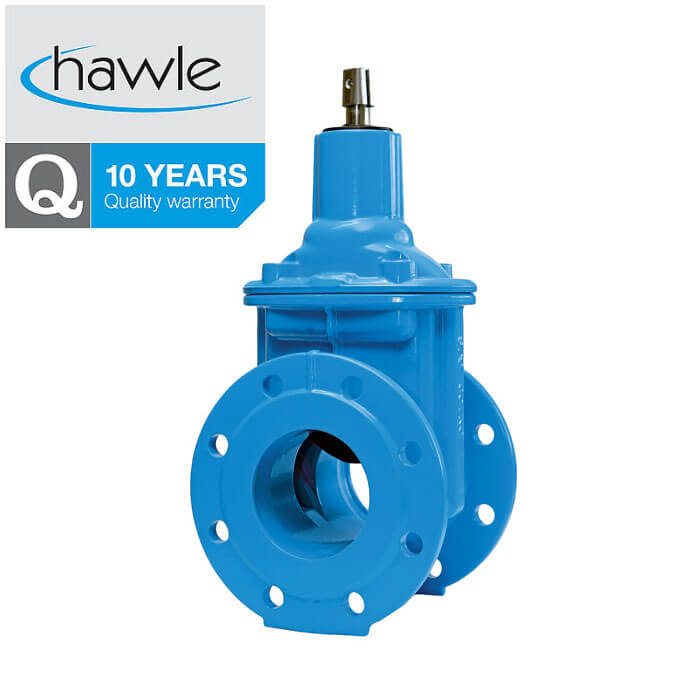

E1+ VALVE - DN 50-300, PN10/PN16

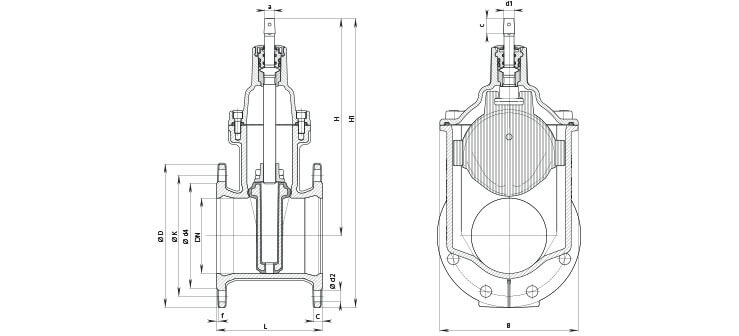

Hawle E1+ DN 50 - 300 Technical Specifications
| DN | MOP (PN) | Flange | Bolts | Spindle | Valve | Weight | |||||||||||
| Ø D | C | Ø K | Ø d4 | f | Qty. | Thread | Ø d2 | a | c | Ø d1 | H | H1 | L | B | |||
| 50 | 10 | 165 | 18 | 125 | 98 | 5 | 4 | M 16 | 19 | 14,8 | 30 | 18 | 230 | 313 | 150 | 135 | 8,5 |
| 16 | |||||||||||||||||
| 65 | 10 | 185 | 18 | 145 | 118 | 5 | 4 | M 16 | 19 | 17,3 | 30 | 20 | 298 | 390 | 170 | 172 | 13,5 |
| 16 | |||||||||||||||||
| 80 | 10 | 200 | 18 | 160 | 133 | 5 | 8 | M 16 | 19 | 17,3 | 30 | 20 | 305 | 405 | 180 | 172 | 14,5 |
| 16 | |||||||||||||||||
| 100 | 10 | 220 | 18 | 180 | 153 | 5 | 8 | M 16 | 19 | 19,3 | 30 | 20 | 339 | 449 | 190 | 203 | 18,5 |
| 16 | |||||||||||||||||
| 125 | 10 | 250 | 17 | 210 | 183 | 4 | 8 | M 16 | 19 | 19,3 | 30 | 20 | 420 | 545 | 200 | 275 | 31,0 |
| 16 | |||||||||||||||||
| 150 | 10 | 285 | 17 | 240 | 209 | 4 | 8 | M 20 | 23 | 19,3 | 30 | 20 | 432 | 575 | 210 | 275 | 34,0 |
| 16 | |||||||||||||||||
| 200 | 10 | 340 | 19,5 | 295 | 264 | 4,5 | 8 | M 20 | 23 | 24,3 | 38 | 25 | 534 | 704 | 230 | 345 | 54,0 |
| 16 | 12 | ||||||||||||||||
| 250 | 10 | 400 | 21,5 | 350 | 318 | 4,5 | 12 | M 20 | 23 | 27,3 | 38 | 32 | 626 | 826 | 250 | 422 | 82,0 |
| 16 | 94,0 | ||||||||||||||||
| 300 | 10 | 455 | 24 | 400 | 371 | 5,5 | 12 | M 20 | 23 | 27,3 | 38 | 32 | 709 | 937 | 270 | 506 | 124,5 |
| 16 | 142,0 | ||||||||||||||||
